B3Z-HD Rope Seal Pump (CW Thread)

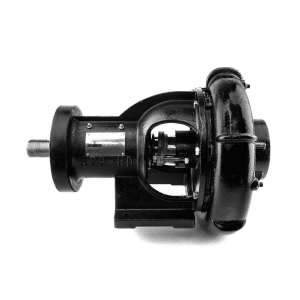

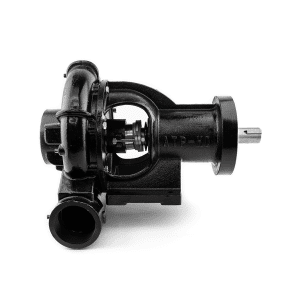

The ATP B3Z-HD Clockwise, Rope Seal type Pump is a 4″ x 3″ Centrifugal Frame Mounted Water Pump. This Heavy-Duty pump has a 1¹⁄₂″ Shaft with a ⁵⁄₈″ Keyway, and a KEYED Impeller with 1¹⁄₄″ Bore, making it stronger than the standard B3Z. This pump is THREADED on both the suction and discharge side and at 2500 RPM, performs at a rate up to 750 GPM at 65 PSI. When driven directly via PTO, this pump is used for trucks with Automatic Transmissions.

This ATP Water Pump is a direct replacement for Berkeley Pump B3ZRM (B86070).

Check out our Water Pump Guide for more information on pump rotation, connections and seal type.
